Lathe Machine :
   Heavy Duty Lathe Machine :
Technical Specification
PARTICULARS
TR - 066"
TR - 084"
TR - 108 "
TR - 120 "
TR - 144 "
Length of Bed
Width of Bed
Height of Center
Between Center
Spindle Bore
Spindle Speed
Compound Side
Cross Side size degree
Carriage Size
Cross Side Travel
Top Slide Travel
Lead Screw
Lead Screw Diameter
Metric Thread
Inches Thread
Tail Stock Spindle
Tail Stock Spindle
Tapper Bore Travel
Length of Gap
Length of Gap
Regd. Power in
V-Belt / Flat Belt
RPM
Total Height
Floor Space
Weight of Machine
1650mm (66”)
320mm (12 3/4”)
250mm (10”)
500mm (20”)
53mm (2 1/8”)
8
45-0-45
200 x 500mm
450 x 500mm
275mm (11”)
150mm (6”)
4 T.P.I.
40mm (1 5/8”)
1 to 7mm
4 to 28 TPI
50mm (2”)
175mm (7”)
M.T.-4
300mm (12”)
175mm (7”)
3 H.P.
C-72/2” x 78”
30/500
1300mm (52”)
1875 x 1250mm
1200kg.
2100mm (84”)
320mm (12 3/4”)
250mm (10”)
1000mm (40”)
53mm (2 1/8”)
8
45-0-45
200 x 500mm
450 x 500mm
275mm (11”)
150mm (6”)
4 T.P.I.
40mm (1 5/8”)
1 to 7mm
4 to 28 TPI
50mm (2”)
175mm (7”)
M.T.-4
300mm (12”)
175mm (7”)
3 H.P.
C-72/2” x 78”
30/500
1300mm (52”)
2400 x 1250mm
1300kg.
2700mm (108”)
320mm (12 3/4”)
250mm (10”)
1600mm (64”)
53mm (2 1/8”)
8
45-0-45
200 x 500mm
450 x 500mm
275mm (11”)
150mm (6”)
4 T.P.I.
40mm (1 5/8”)
1 to 7mm
4 to 28 TPI
50mm (2”)
175mm (7”)
M.T.-4
300mm (12”)
175mm (7”)
3 H.P.
C-72/2” x 78”
30/500
1300mm (52”)
3000 x 1250mm
1400kg.
3000mm (120”)
320mm (12 3/4”)
250mm (10”)
1900mm (64”)
53mm (2 1/8”)
8
45-0-45
200 x 500mm
450 x 500mm
275mm (11”)
150mm (6”)
4 T.P.I.
40mm (1 5/8”)
1 to 7mm
4 to 28 TPI
50mm (2”)
175mm (7”)
M.T.-4
300mm (12”)
175mm (7”)
3 H.P.
C-72/2” x 78”
30/500
1300mm (52”)
3300 x 1250mm
1500kg.
3600mm (144”)
320mm (12 3/4”)
250mm (10”)
2500mm (100”)
53mm (2 1/8”)
8
45-0-45
200 x 500mm
450 x 500mm
275mm (11”)
150mm (6”)
4 T.P.I.
40mm (1 5/8”)
1 to 7mm
4 to 28 TPI
50mm (2”)
175mm (7”)
M.T.-4
300mm (12”)
175mm (7”)
3 H.P.
C-72/2” x 78”
30/500
1300mm (52”)
3900 x 1250mm
1650kg.

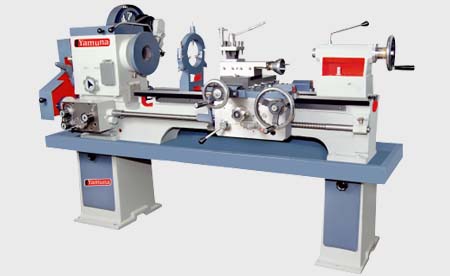

   Medium Duty Lathe Machine :
Technical Specification
PARTICULARS
TR-M-54"
TR-M-63"
TR-M-72"
Length of Bed
Hight of Centre
Between Centre
Width of Bed
Spindle Bore
Width of Bed
Lead Screw
Inch Thread
Metric Thread
Power Required
1350mm (54")
200mm (8")
575mm (23")
275mm (11")
52mm (2 1/8")
175mm (7")
4 TPI
4 to 24
1 to 6 mm
2 HP
1575mm (63")
200mm (8")
800mm (32")
275mm (11")
52mm (2 1/8")
175mm (7")
4 TPI
4 to 24
1 to 6 mm
2 HP
1800mm (72")
200mm (8")
1025mm (41")
275mm (11")
52mm (2 1/8")
175mm (7")
4 TPI
4 to 24
1 to 6 mm
2 HP

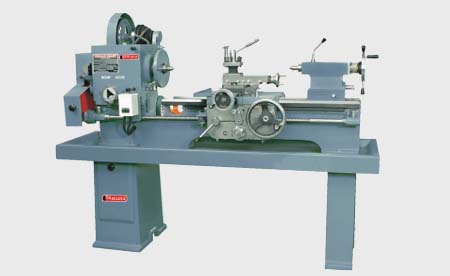

   Light Duty Lathe Machine :
Technical Specification
PARTICULARS
TR-L-54"
TR-L-63"
TR-L-72"
Length of Bed
Hight of Centre
Between Centre
Width of Bed
Spindle Bore
Width of Bed
Lead Screw
Inch Thread
Metric Thread
Power Required
1350mm (54")
167mm (6.5")
600mm (24")
241mm (9.5")
40mm (1 5/8 ")
150mm (6")
4 TPI
4 to 24
1 to 6 mm
1.5 HP
1575mm (63")
167mm (6.5")
825mm (33")
241mm (9.5")
40mm (1 5/8 ")
150mm (6")
4 TPI
4 to 24
1 to 6 mm
1.5 HP
1800mm (72")
167mm (6.5")
1025mm (42")
241mm (9.5")
40mm (1 5/8 ")
150mm (6")
4 TPI
4 to 24
1 to 6 mm
1.5 HP
